The HiTi CS-220e Dye-Sub Color Card Printer permits fast, convenient printing of standard ISO 7810 ID-1-sized cards with the unique ability to print on fully transparent card types. Edge-to-edge printing is possible at a rate of up to 180 cards per hour in color, or 1400 cards per hour in monochrome, with a resolution of 300 dpi. The printer's dye sublimation printing process requires no ink cartridges and little maintenance for maximum uptime and efficiency.
FEATURES:
- Transparent Edge to Edge Card Printer
- Color: Up to 180 Cards/Hour
- Black: Up to 1400 Cards/Hour
- Resolution: 300 dpi with 64MB Memory
- One-Sided Printing, Dual-Sided Possible
- Input Capacity: Up to 100 Cards
- Print Status LCM Monitor
- Optional Encoding Modules Available
- For Windows
- Includes Template Editing Software!
Included with the printer is the CardDesiree CS software, for designing ID templates, editing ID photo elements, laying out print settings, managing batch printing jobs, and connecting to databases from a Windows computer. which facilitates editing and designing templates and other components for cards. To further extend the capabilities of the CS-220e, a range of optional accessory encoding modules are available, as well as a Flipper module to permit automatic duplex printing.
- • Dye-sub card printer capable of printing on transparent cards.
• Fast printing permits up to 1400 monochrome cards to be made per hour, or up to 180 color cards per hour,
with a print resolution of 300 dpi.
• No inks and, instead, uses YMCKO or monochrome ribbons for greater uptime and printing efficiency.

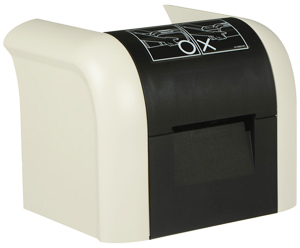

• Optional encoding modules are available as well as a Flipper module for duplex printing, an Ethernet
connection module, and a high-capacity input hopper.
• An integrated LCD monitor and four-button control system provides direct control over printing functions.
- SPECIFICATIONS:
| Printing Technology |
Dye-sublimation (direct-to-card) |
| Maximum Resolution |
300 dpi |
| Ink Palette |
CMYK - YMCKO and monochrome printing |
| Performance |
|---|
| Print Speed |
Color: Up to 180 cards/hour
Black: Up to 1400 cards/hour |
| Input Buffer |
64 MB |
| Duplex Printing |
With optional Flipper Module |
| Card Sizes |
2.13 x 3.37" / 53.98 x 85.60 mm (CR-80 ISO 7810, ID-1 format) |
| Thickness |
9.8-39.4 mil / 0.25-1.0 mm |
| Borderless Printing |
Yes |
| Capacity |
Input: 100 cards (30 mil / 0.76 mm)
Output: 50 cards (30 mil / 0.76 mm) |
| Print Media |
Full panel YMCKO 400 roll (ribbon only)
Half panel YMCKO 560 roll (ribbon only)
Monochrome resin black 1000 roll (ribbon only)
YMCKOK 330 (ribbon only) |
| Connectivity |
|---|
| Computer Interface |
USB |
| System & Software Requirements |
Windows 2000, XP, Vista, or 7 (32- or 64-bit)
|
| Bundled Software |
CardDesiree CS (Windows only) |
| Physical |
|---|
| Display |
LCM (Liquid Crystal Monitor) |
| Front Panel Controls |
4 buttons, 2 LEDs |
| Operating Environment |
59-89.6°F / 15-32°C
20-75% relative humidity, non-condensing |
| Dimensions (WxHxD) |
7.8 x 13.9 x 8.0" / 19.8 x 35.4 x 20.4 cm |
| Weight |
10.8 lb / 4.9 kg
|
88.C1137.000T
HiTi CS-220e Dye-Sub Color Card Printer
- Card Output Tray
- Weight Module
- USB Cable
- Power Adapter
- Power Cord
- Dust Eliminator with Cleaning Roller
- Cleaning Kit
- CardDesiree CS Software CD-ROM
- Limited 1-Year Warranty
