Overview

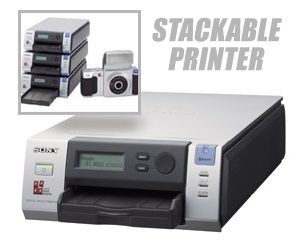

Stackable
Digital A6 and A7 Photo Printer
When quality and durability of your
prints is paramount UP-DX100 is a USB interfaced Digital Photo Printer
that can either be used as a stand-alone printer in a Windows¿ environment
or be used as part of the ID photo system UPX-C200 through Bluetooth® . Up
to two additional UP-DX100 printers can be added to the UPX-C200 system.
The digital printer reproduces photo-quality prints at a high resolution
of 403 dpi, and when combined with the 4 megapixel digital still camera,
the UPX-C200system provides high quality Passport/ID photos and mini
portraits in a variety of useful print sizes, combining exceptional image
quality and a well-designed feature set in a
single unit.
Features
• USB 1.1 and Bluetooth® interface.
Allows for wireless connection to ID camera and for PC control via Windows interface and USB cable
• Prints various photo sizes by using two different print media sizes.
Takes print media in two sizes so that it can print both 90 x 101.6 mm (3.5 x 4 inch) and 101.6 x 152.4 mm (4 x 6 inch)
• Fast printing
The UP-DX100 prints at 75 seconds/sheet, and also up to 3 printers can be connected to the Camera simultaneously by the Bluetooth¿ interface. When using 3 printers the printout time goes down from 75 seconds/sheet to 40 seconds/sheet, when using the X34 media.
• Colour and B/W printing
The system provides both colour and black and white (B/W) print options for a variety of Passport/ID photo applications
Connects to the UPX-C200 system via
Bluetooth® .
The printer does not need to be visible in
the shop or connected to the camera ¿ it can be up to 10 metres away,
and the Bluetooth¿ function even works through walls. So you have
complete control over the printing process.
Has a USB 1.1 interface for easy
connectivity to a PC.
Connects to PCs with Windows¿ operating
software and then allows for setting changes to print different sizes,
layouts etc. So, it can also be used as a stand alone printer with a PC.
Versatile printing
Two print packs ¿ 90 x 101 mm (3 1⁄2
x 4 inch) and 101 x 152 mm (4 x 6 inch) ¿ are available to meet all your
Passport/ID photo and mini portrait applications. Both allow you to
create combinations of different images and different image sizes on one
sheet of media.
Using the 101 x 152 mm media, you can choose from 16 different image
sizes, including one full bleed (edge to edge) mini portrait. You can
also print up to three different images and image sizes per sheet.
Using the 90 x 101 mm media, you can choose from 14 different image
sizes, and print up to two different images or two different sizes on
one sheet of media.
Exceptional photo quality and durability
The UP-DX100 uses print media* which
is a little thicker than the media that other printers use. This in
order to get the extra feel of photo quality. The SuperCoat2 lamination
will provide the printouts a very long life (nearly 100 years when
stored in a photo album).
*Click here for a Sony Paper Media Brochure
(PDF 870Kb)
Technical Specs:
Printing method |
Dye sublimation printing |
Printing resolution |
403 dpi |
Printing gradation |
24-bit (16.7 Million colour) |
Paper tray capacity |
25 sheets (10UPC-X46)
30 sheets (10UPC-X34) |
Power requirements |
AC 100 to 240 V, 50/60Hz |
Power consumption |
23 W |
Printing time |
Approx. 65 seconds (10UPC-X34)
Approx. 100 seconds (10UPC-X46) |
Dimensions |
203 (W) x 85 (H) x 305 (D) mm
(8 x 3 3/8 x 12 1/8 inch) |
Weight |
Approx. 2.7 kg (5 lb 15 oz) |
Safety Standards |
UL60950, FCC Part 15 Subpart C (247), CSA
No950, IC RSS-210, ICES-003, EN60950, EN300328-1, -2, EN301489-1, -17,
EN55022+55024(class B), EN61000-3-2 / EN61000-3-3, CCC (GB4943 +
GB9254 +17625.1), Wireless Telegraph Law:[2001] No.653, MIC (CISPR22 +
CISPR24 + IEC61000), Ministry of Information and Communication
Republic of Korea - No.2001-67
|
